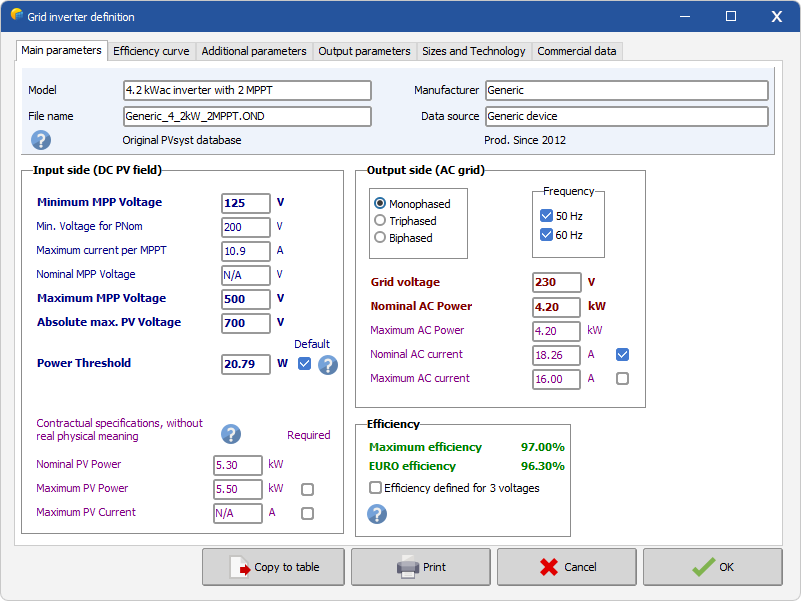

Grid inverters parameter are defined through a 5-sheet dialog:
| Main Parameters, | the identifiers and the fundamental properties of a specific inverter type, |
| Efficiency curve, | defines the detailed operating efficiency behavior, |
Additional Parameters, properties and specificities of the inverter,
| Output parameters | Power factor and Pnom as function of temperature |
| Size and others | physical sizes and weight, as well as comments about technology, |
The model used by the simulation is fully described in :
Inverter model: Input and Output
