Canadian EPW data can be directly and very easily imported into PVsyst:



1.Download the desired file from the EnergyPlus web site. After choosing the desired EPW file, you can simply download it by choosing  "File" / "Save As" it in your web browser.

2.Come back to PVsyst, option "Tools"/"Import Meteo Data"/”Canadian EPW”, and follow the instructions on the screen  (i.e. simply "Choose" the file and press "Import").



NB: If the file downloaded by this mean is not suited for PVsyst (gives errors), this may be due to a transformation of the format by your browser. In this case you should download the ZIP file and extract the  *.epw file.

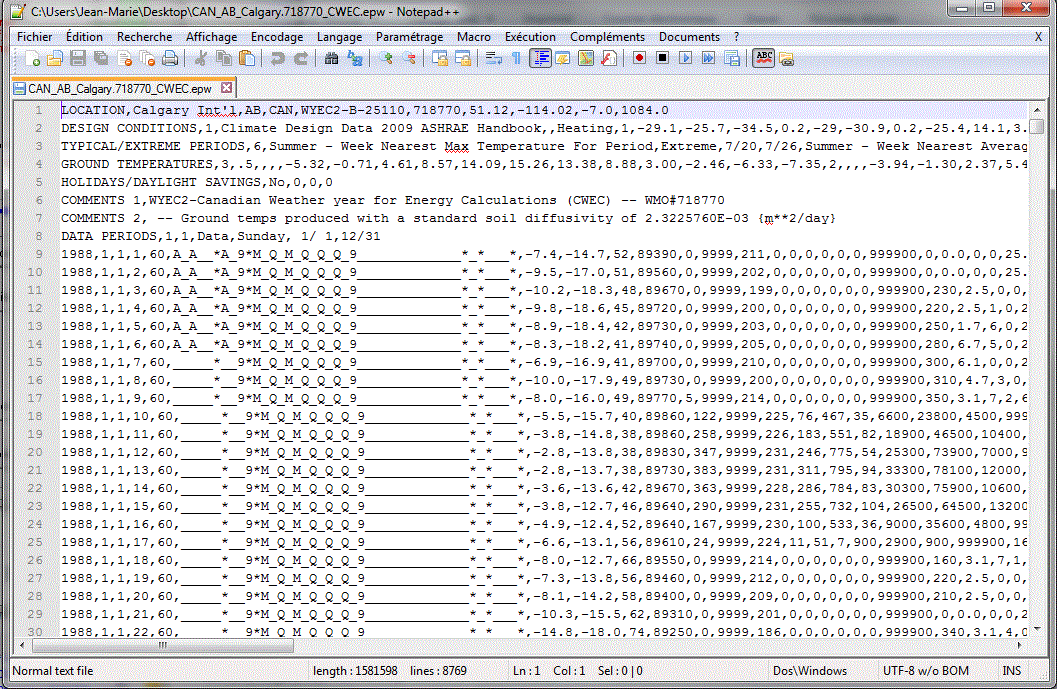

The import of EPW data will create a Geographic site (*.sit file) and an Hourly Meteo data file (*.met file) with Global, Diffuse, Temperature and Wind speed values.
