The battery dialog includes several definition sheets:

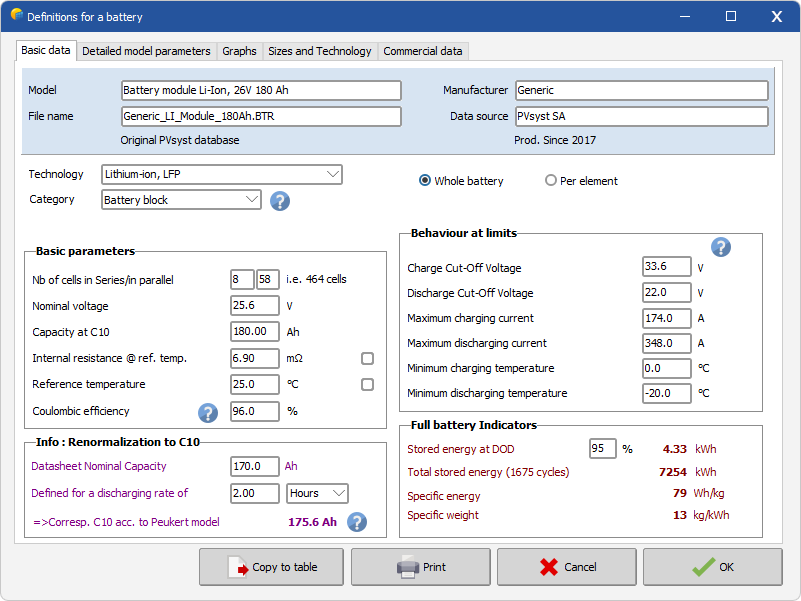

-        Basic data, the identifiers and the fundamental properties of a specific battery type.

-        Detailed Model parameters, which show a set of secondary parameters, and the corresponding behaviors.

-        Sizes and technology, to define dimensions and weight, as well as some specific comments.

-        Commercial data, identical to all PVsyst components.

-        Graphs, a tool visualizing the usual charge/discharge curves of the Battery Model electrical behavior.
