Ground Image Control usage

A simple example showing how to use ground image is to import an image where a building roof is visible. The user set first the upper left corner of the building roof as origin (X1), then the upper right corner as X2 and finally set the distance between X1 and X2. After the transformation is applied, the roof upper left corner is moved to shading scene origin, the roof upper border becomes horizontal and the scale matches the shading scene grid. Now the user can easily add PV and shading objects on the roof.

Definition of ground image transformations

The Ground Image control User Interface allows to easily set the points and distance between them:

1. The user first set the position of ground image origin (named X1) by moving the mouse and pressing its left button.
2. Once X1 position is set, the user set the position of second point on X axis (named X2) again by moving mouse and pressing its left button
3. Finally the distance between X1 and X2 is set by selecting the related edit box in Ground Image control dialog.

Note that you can use the 3D Editor zoom control to set X1 and X2 position with more precision.

It's also possible to move X1 and X2 using the arrow keys together with Shift and/or Ctrl key. You can change the point to move by selecting X1 or X2 related edit boxes.

Applying ground image transformations

The transformations are applied to the ground image once you click on the "Apply" button.

Once transformations have been applied, the "Apply" button is replaced with an "Edit" button. Clicking this "Edit" button allows to display back the original image and to edit X1/X2 position and distance again.

Opacity and visibility

It is possible to control the opacity and the visibility of the ground image by using the "Opacity" scrollbar and the "Show/Hide" button.

Cropping the ground image

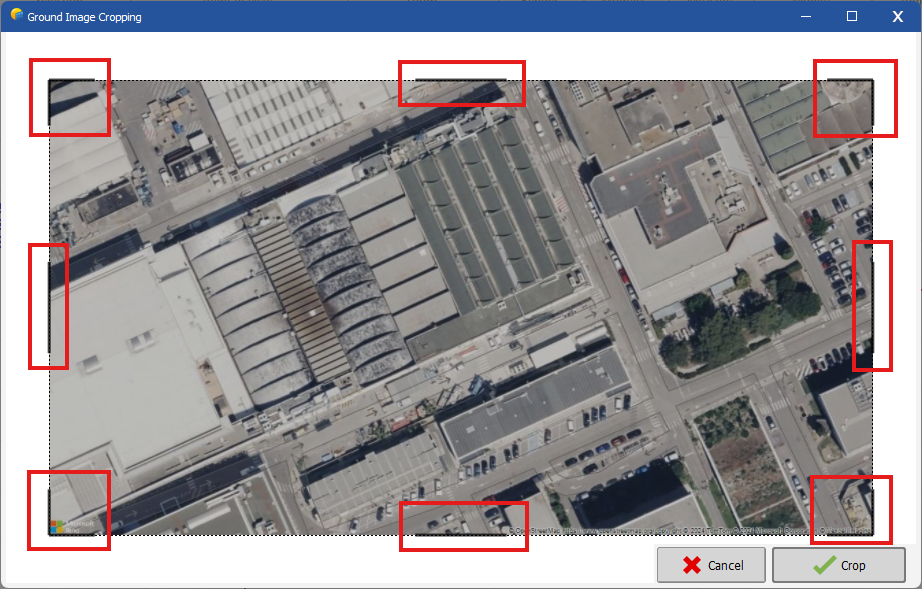

A click on the "Crop" button will open a new window displaying the ground image with handles on its corners. Those handles allow to crop the image so that only part of the image is displayed on the 3D scene. The original image is saved so you can always come back to modify the crop zone.

Additional information

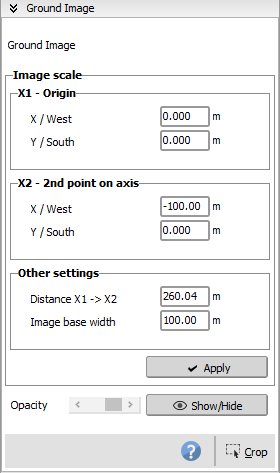

The Ground Image edition panel is shown in the right panel when a ground image is currently being edited.

The file used to import ground image will be copied in user workspace (in directory "Shadings") as soon as the user saves the shading scenes or his project.
