System overview tool

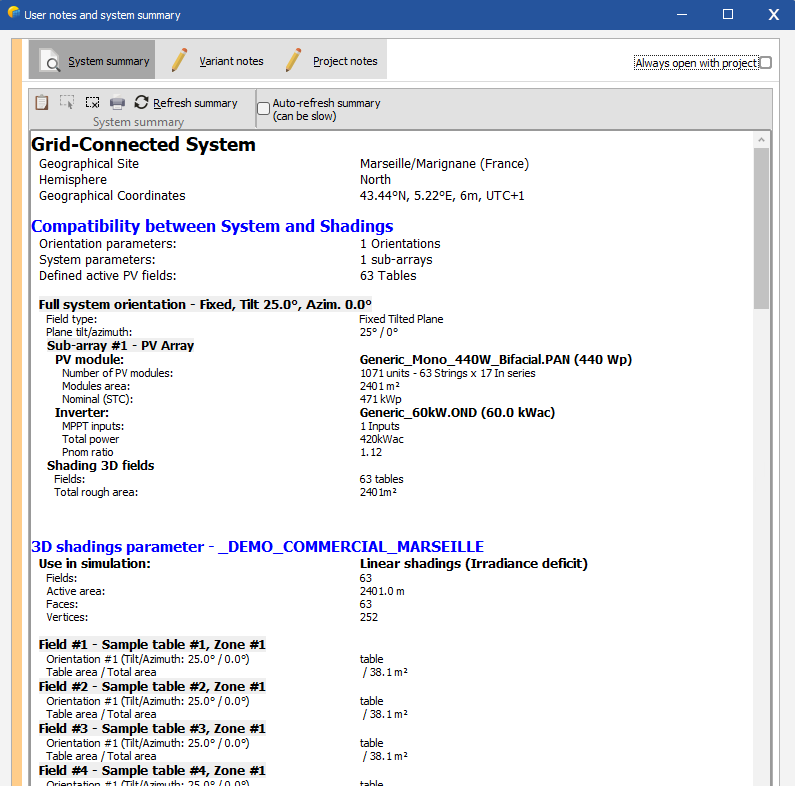

The inter-compatibilities between the orientations, the electrical part (system) and the 3D construction may be difficult to establish when you have several orientations. Therefore, there is a tool available from several menus (button System overview) that provides the main characteristics already established for the system. This tool shows 4 lists of parameters:

system overview

  • Orientation parameters.
  • Compatibility between System and Shadings, especially concerning orientations and areas for each orientation.
  • System parameters: list of the sub-arrays, their orientation, number of modules, inverters, etc.
  • Shading scene parameters: the list of all 3D subfields, with their area and orientation.

Each list is accompanied with possible error or warning messages.
