Importing ReuniWatt Data

Weather data files cannot be dowloaded from the website (ReuniWatt has to be contacted by mail, info@reuniwatt.com)

The hourly data is provided in the PVsyst standard format, for a direct and easy import in PVsyst.

Reference time of weather data files is GMT (universal time, UT).

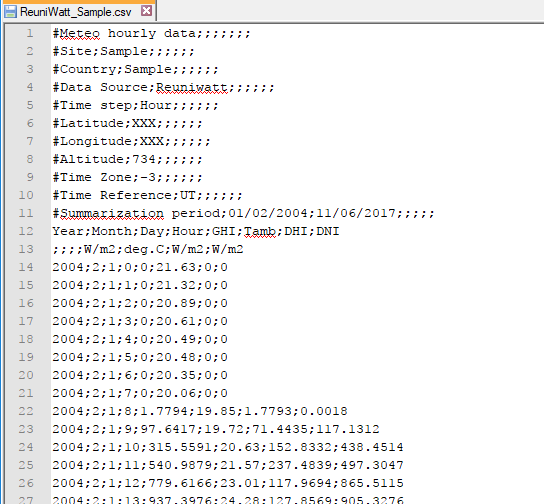

ReuniWatt_stdfileSample

Native ReuniWatt files contains more data. All of them are listed below :

  • GHI: Global Horizontal Irradiance
  • Tamb: Ambient Temperature
  • DHI: Diffuse Horizontal Irradiance
  • DNI: Direct Normal Irradiance
  • BNI: Beam Normal Irradiance
  • Aod: Aerosol optical depth 550 nm
  • TOA: Global Horizontal Irradiance Top Of Atmosphere
  • GHI_CC: Clear-sky GHI
  • DHI_CC: Clear-sky DHI
  • BNI_CC: Clear-sky BNI
  • SZA: Solar Zenith Angle
  • Tco3: Total Column content of Ozone
  • Tcwv: Total Column content of Water Vapor
  • AOD_BC: Partial Aerosol Optical Depth at 550 nm for black carbon
  • AOD_DU: Partial Aerosol Optical Depth Dust
  • AOD_SS: Partial Aerosol Optical Depth Sea Salt
  • AOD_OR: Partial Aerosol Optical Depth Organic Matter
  • AOD_1240: Aerosol Optical Depth at 1240 nm
  • Fiso: Isotropic part of bidirectionnal reflectance distribution function (BRDF) (MODIS parameter)
  • Fvol: Factor describing the anisotropic part of the BRDF linked to the viewing geometry (MODIS parameter)
  • Fgeo: Factor describing the anisotropic part of the BRDF linked to the illuminating geometry (MODIS parameter)
  • Albedo: Ground Albedo
  • Cloud_optical_depth
  • Cloud_coverage (between 0 and 100 %)
  • Cloud_type:
    • 1: no value / pas de valeur ;
    • 0: no clouds / pas de nuages ;
    • 5: low cloud / nuage bas ;
    • 8: thin cloud / nuage fin.
