<< Click to Display Table of Contents >> Navigation:  Technical aspects > Printing > Preview a document

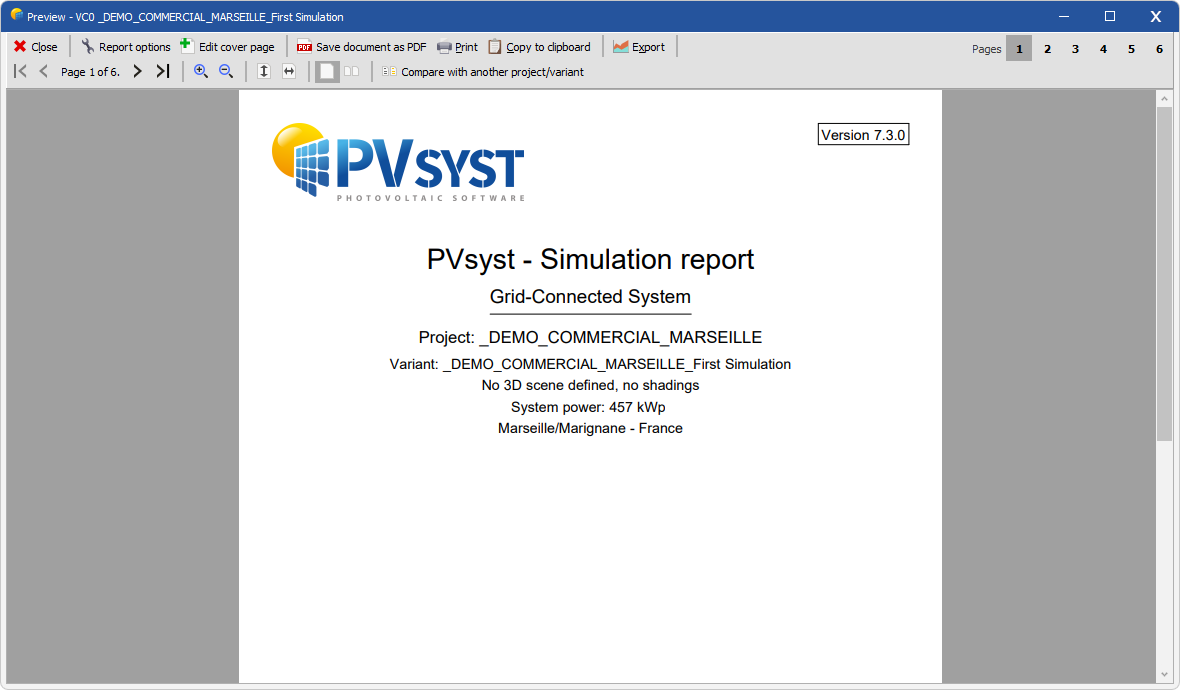

To preview a document, click on the "Preview" button of the settings dialog.
When displaying the simulation report, the preview is directly opened.



Features

Report options : Open the final report option dialog.

Edit cover page : Open the cover page dialog.

Save document as PDF : Save the document to PDF.

Print : Open the system print dialog to send the document to a printer.

Copy to clipboard : Copy the document to the clipboard.

Export : This button is only visible when previewing the simulation report, it opens the results export dialog.

Compare with another project/variant : This button allows to select another project/variant's report and compare it with the currently previewed one. Differences between two projects can be highlighted for easy comparison.



Page navigation : navigate through pages using these buttons. Click on the center label to jump to a specific page number.



Zoom in : Zoom on the document.

Zoom out : Zoom out of the document.

Fit in height : Fit document vertically so one page is completely visible.

Fit in width : Fit the document horizontally.



Direct page access : jump to the given page directly. These buttons are not shown if the document has only one page, or it has more than ten pages.
