You may want to convert fixed tables to trackers at some point in PVsyst for example if you imported a 3D scene which contained fixed tables, or also if you filled a zone with fixed tables.

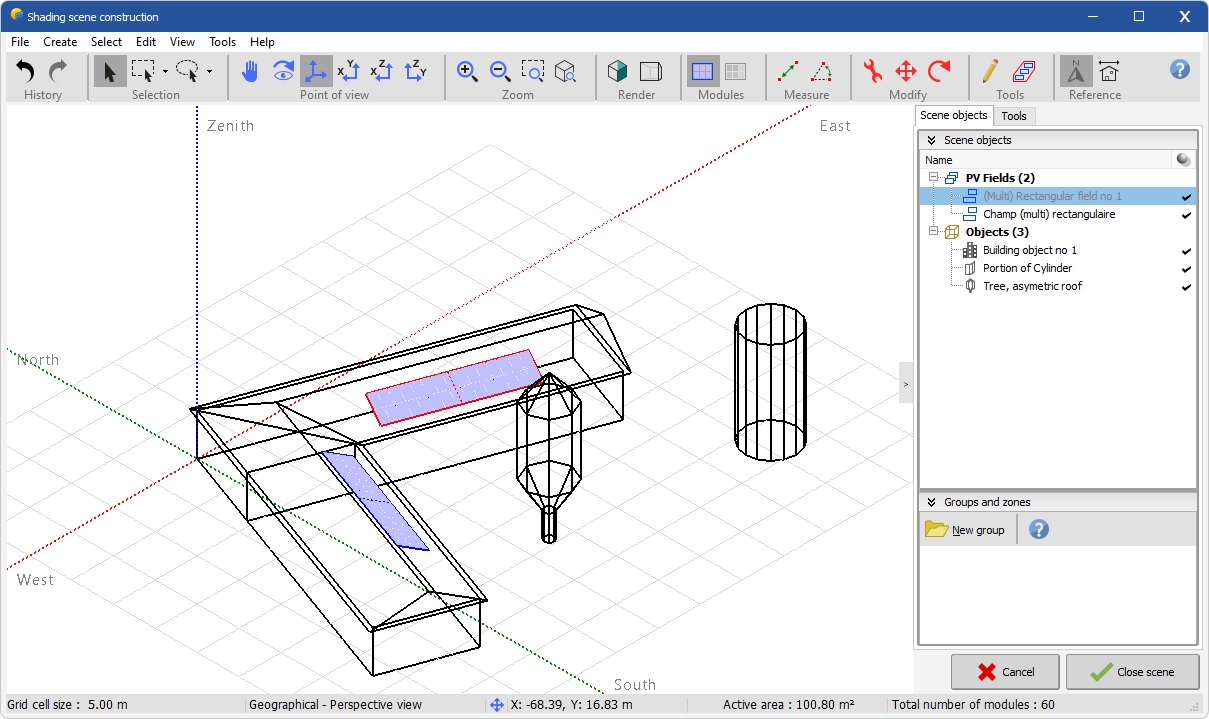

First select the fixed tables you want to convert in the 3D scene:

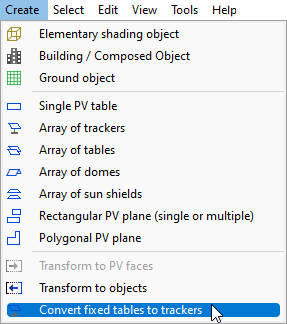

Then click on the menu called "Create -> Convert fixed tables to trackers":

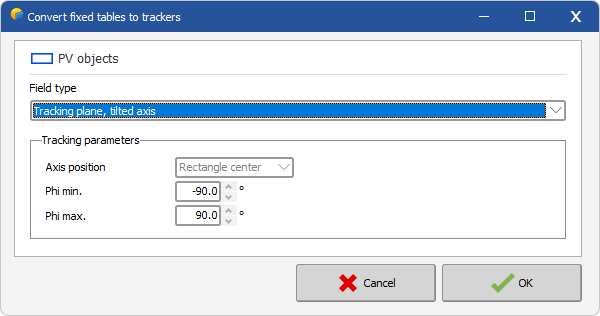

This will show a dialog asking you to specify which type of tracker you want to end up with as well as the tracking parameters:



Define everything as you wish and then click on OK. The selected tables will then be converted to trackers.
